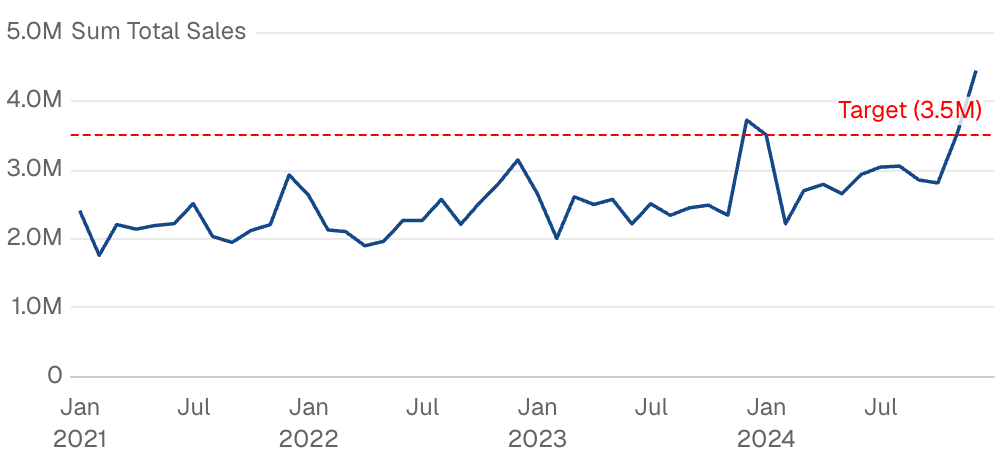

Reference Line

{% line_chart
    data="demo.daily_orders"
    x="date"
    y="sum(total_sales)"
    date_grain="month"
%}
    {% reference_line
        y=3500000
        label="Target"
        color="red"
    /%}
{% /line_chart %}

Examples

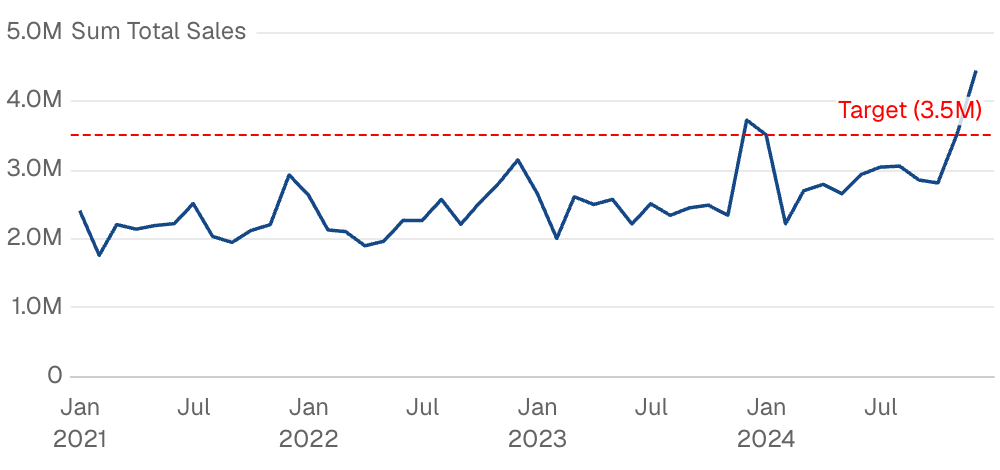

Horizontal Target Line

{% line_chart
    data="demo.daily_orders"
    x="date"
    y="sum(total_sales)"
    date_grain="month"
%}
    {% reference_line
        y=3500000
        label="Target"
        color="red"
    /%}
{% /line_chart %}

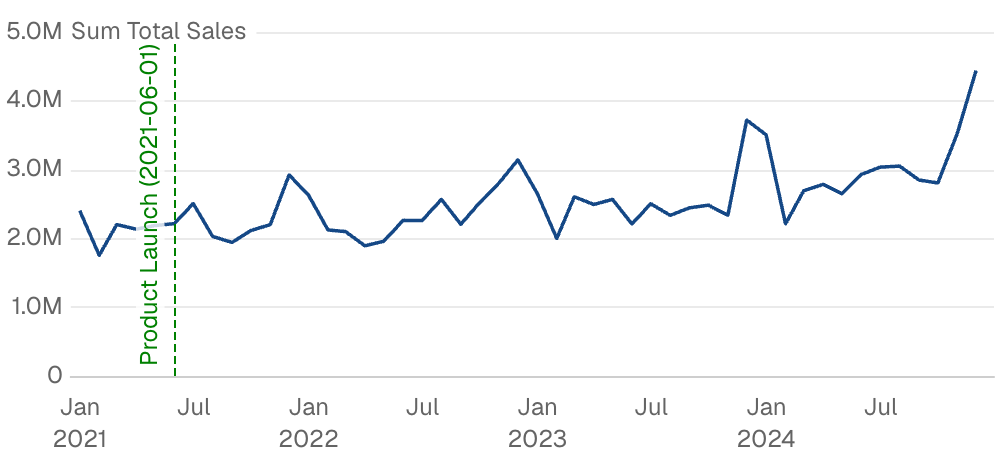

Vertical Line at Date

{% line_chart
    data="demo.daily_orders"
    x="date"
    y="sum(total_sales)"
    date_grain="month"
%}
    {% reference_line
        x="2021-06-01"
        label="Product Launch"
        color="green"
    /%}
{% /line_chart %}

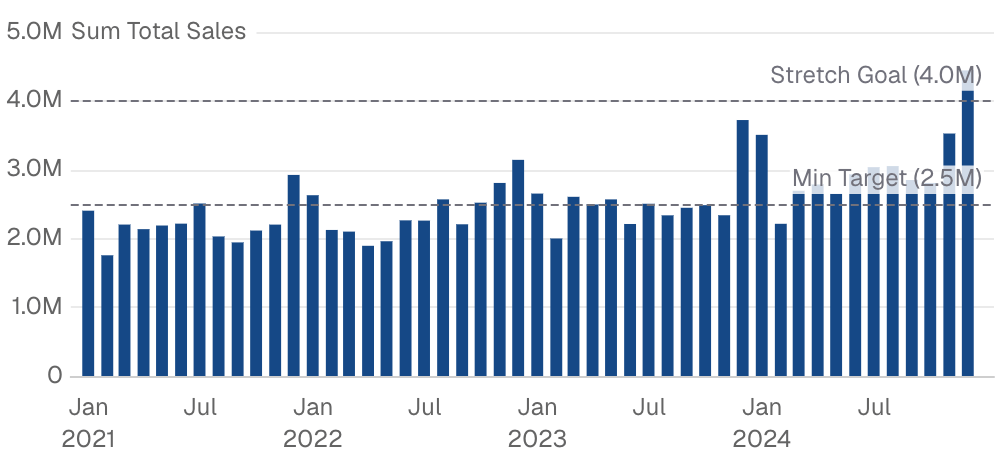

Reference Lines from Data

```sql ref_lines
select 2500000 as ref, 'Min Target' as ref_label
union all
select 4000000, 'Stretch Goal'
```

{% bar_chart
    data="demo.daily_orders"
    x="date"
    y="sum(total_sales)"
    date_grain="month"
%}
    {% reference_line
        data="ref_lines"
        y="ref"
        label="ref_label"
    /%}
{% /bar_chart %}

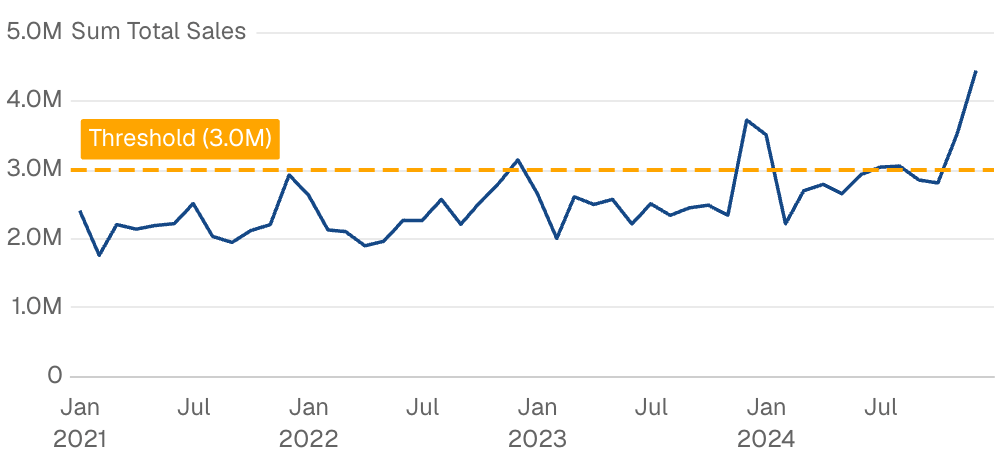

Custom Label Styling

{% line_chart
    data="demo.daily_orders"
    x="date"
    y="sum(total_sales)"
    date_grain="month"
%}
    {% reference_line
        y=3000000
        label="Threshold"
        color="orange"
        label_options={
            position="above_start"
            background_color="orange"
            color="white"
            padding=4
        }
        line_options={
            type="dashed"
            width=2
        }
    /%}
{% /line_chart %}

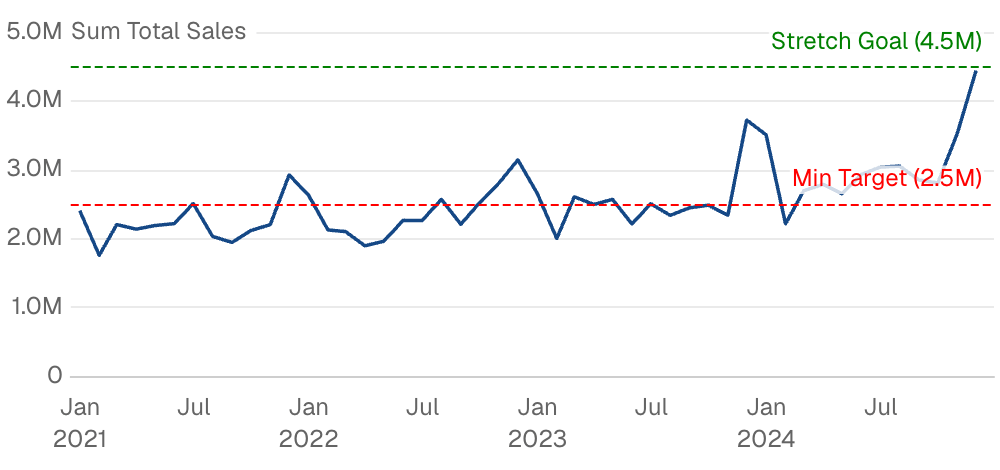

Multiple Reference Lines

{% line_chart
    data="demo.daily_orders"
    x="date"
    y="sum(total_sales)"
    date_grain="month"
%}
    {% reference_line y=2500000 label="Min Target" color="red" /%}
    {% reference_line y=4500000 label="Stretch Goal" color="green" /%}
{% /line_chart %}

Attributes

string

Query name to use for calculating dynamic reference values

array

IDs of filters to apply to the query (requires data)

string

Custom SQL WHERE condition to apply to the query. For date filters, use date_range instead.

string

Text label to display on the reference line

string | number

X-axis value for a vertical reference line (e.g., a date or category)

string | number

Y-axis value for a horizontal reference line (e.g., a target or threshold)

string | number

Starting x-coordinate for a sloped line

string | number

Starting y-coordinate for a sloped line

string | number

Ending x-coordinate for a sloped line

string | number

Ending y-coordinate for a sloped line

string

Color of the reference line

options group

Styling options for the labelExample:

label_options={
  position = "above_end"
  align = "left"
  color = "string"
  background_color = "string"
  padding = 0
  fmt = "date"
  hide_value = true
  border = {
    width = 0
    type = "solid"
    color = "string"
    radius = 0
  }
  text = {
    size = 0
    bold = true
    italic = true
  }
}

Attributes:

position: string
- Allowed values:
  - above_end
  - above_start
  - above_center
  - below_end
  - below_start
  - below_center
align: string
- Allowed values:
  - left
  - center
  - right
color: string
background_color: string
padding: number
fmt: string - Format the label value. Defaults to series or axis fmt.
- Allowed values: See Value Formatting for all available formats.
hide_value: boolean
border: options group
- Options:
  - width: number
  - type: string
    - Allowed values:
      - solid
      - dashed
      - dotted
  - color: string
  - radius: number
text: options group
- Options:
  - size: number
  - bold: boolean
  - italic: boolean

options group

Styling options for the line itselfExample:

line_options={
  color = "string"
  width = 0
  type = "solid"
  opacity = 0
}

Attributes:

color: string
width: number - Width of the line
type: string
- Allowed values:
  - solid
  - dashed
  - dotted
opacity: number - Between 0 and 1

options group

Symbol shapes to display at line endpointsExample:

symbols={
  start = {
    shape = "circle"
    size = 0
  }
  end = {
    shape = "circle"
    size = 0
  }
}

Attributes:

start: options group
- Options:
  - shape: string
    - Allowed values:
      - circle
      - emptyCircle
      - rect
      - roundRect
      - triangle
      - diamond
      - pin
      - arrow
      - none
      - image://
      - path://
  - size: number
end: options group
- Options:
  - shape: string
    - Allowed values:
      - circle
      - emptyCircle
      - rect
      - roundRect
      - triangle
      - diamond
      - pin
      - arrow
      - none
      - image://
      - path://
  - size: number
