Candlestick

```sql stock_prices
SELECT '2024-01-01'::date as date, 100.0 as open, 105.0 as high, 95.0 as low, 102.0 as close
UNION ALL SELECT '2024-01-02'::date, 102.0, 108.0, 100.0, 105.0
UNION ALL SELECT '2024-01-03'::date, 105.0, 110.0, 103.0, 108.0
UNION ALL SELECT '2024-01-04'::date, 108.0, 112.0, 106.0, 104.0
UNION ALL SELECT '2024-01-05'::date, 104.0, 107.0, 98.0, 100.0
```

{% candlestick
    data="stock_prices"
    x="date"
    open="open"
    high="high"
    low="low"
    close="close"
    y_axis_options={
        min=90
        max=115
    }
/%}

Examples

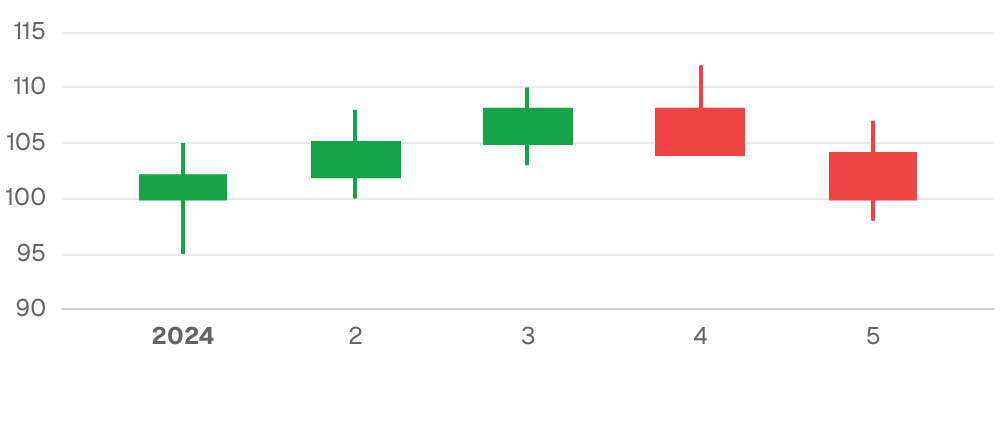

Basic Usage

```sql stock_prices
SELECT '2024-01-01'::date as date, 100.0 as open, 105.0 as high, 95.0 as low, 102.0 as close
UNION ALL SELECT '2024-01-02'::date, 102.0, 108.0, 100.0, 105.0
UNION ALL SELECT '2024-01-03'::date, 105.0, 110.0, 103.0, 108.0
UNION ALL SELECT '2024-01-04'::date, 108.0, 112.0, 106.0, 104.0
UNION ALL SELECT '2024-01-05'::date, 104.0, 107.0, 98.0, 100.0
```

{% candlestick
    data="stock_prices"
    x="date"
    open="open"
    high="high"
    low="low"
    close="close"
    y_axis_options={
        min=90
        max=115
    }
/%}

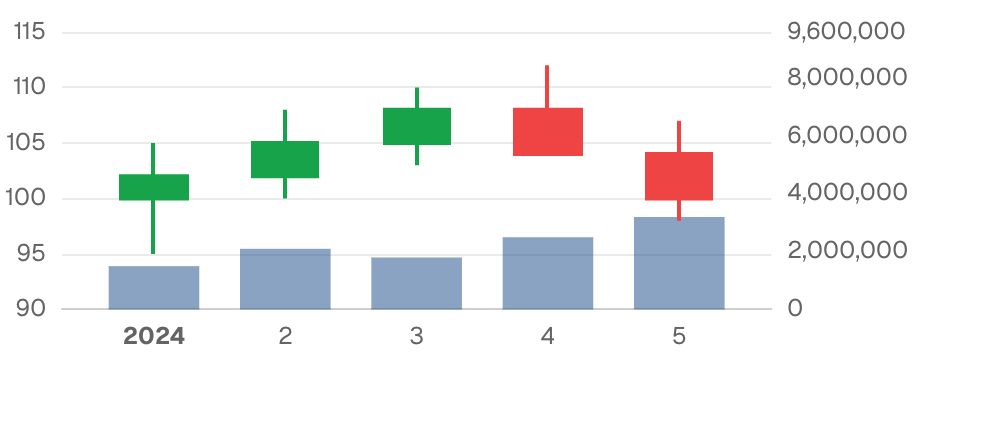

With Volume

```sql stock_prices
SELECT '2024-01-01'::date as date, 100.0 as open, 105.0 as high, 95.0 as low, 102.0 as close, 1500000 as volume
UNION ALL SELECT '2024-01-02'::date, 102.0, 108.0, 100.0, 105.0, 2100000
UNION ALL SELECT '2024-01-03'::date, 105.0, 110.0, 103.0, 108.0, 1800000
UNION ALL SELECT '2024-01-04'::date, 108.0, 112.0, 106.0, 104.0, 2500000
UNION ALL SELECT '2024-01-05'::date, 104.0, 107.0, 98.0, 100.0, 3200000
```

{% candlestick
    data="stock_prices"
    x="date"
    open="open"
    high="high"
    low="low"
    close="close"
    volume="volume"
    y2_fmt="num0"
    title="Stock Price with Volume"
    y_axis_options={
        min=90
        max=115
    }
/%}

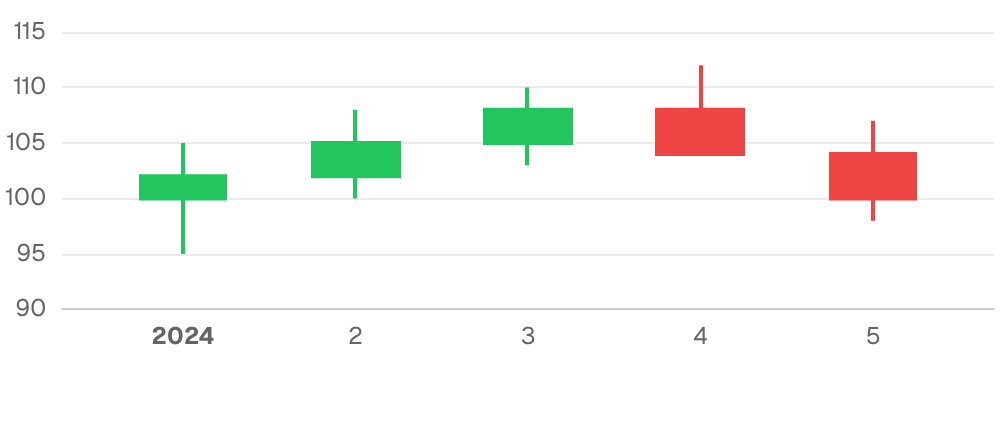

With Custom Colors

```sql stock_prices
SELECT '2024-01-01'::date as date, 100.0 as open, 105.0 as high, 95.0 as low, 102.0 as close
UNION ALL SELECT '2024-01-02'::date, 102.0, 108.0, 100.0, 105.0
UNION ALL SELECT '2024-01-03'::date, 105.0, 110.0, 103.0, 108.0
UNION ALL SELECT '2024-01-04'::date, 108.0, 112.0, 106.0, 104.0
UNION ALL SELECT '2024-01-05'::date, 104.0, 107.0, 98.0, 100.0
```

{% candlestick
    data="stock_prices"
    x="date"
    open="open"
    high="high"
    low="low"
    close="close"
    chart_options={
        up_color="#22c55e"
        down_color="#ef4444"
    }
    y_axis_options={
        min=90
        max=115
    }
/%}

Attributes

string

required

Name of the table or view to query

array

IDs of filters to apply to the query

options group

Filter data to a time period. date_range is an OBJECT with range (the period) and optionally date (which column to filter on when the table has more than one). Shape: date_range={ range="last 12 months" date="order_date" }. range accepts predefined values (last 7 days, month to date), dynamic patterns (Last 90 days), custom windows (2020-01-01 to 2023-03-01), or partial ranges (from 2020-01-01, until 2023-03-01). Pass a plain string for range — the whole object is NOT a string.Example:

date_range={
  range = "today"
  date = "string"
}

Attributes:

range: string - Time period to filter. Use presets like ‘last 7 days’, dynamic patterns like ‘Last 90 days’, custom ranges like ‘2020-01-01 to 2023-03-01’, or partial ranges like ‘from 2020-01-01’.
- Allowed values:
  - today
  - yesterday
  - last 7 days
  - last 30 days
  - last 3 months
  - last 6 months
  - last 12 months
  - previous week
  - previous month
  - previous quarter
  - previous year
  - this week
  - this month
  - this quarter
  - this year
  - next week
  - next month
  - next quarter
  - next year
  - week to date
  - month to date
  - quarter to date
  - year to date
  - all time
date: string - Date column to filter on. Required when the data has multiple date columns.

string

Bucket dates into a grain. Pass the raw date column as x and the chart truncates and groups for you. Temporal grains (day, week, month, quarter, year, hour) preserve the year — use for time-series. Seasonality grains (day of week, day of month, day of year, week of year, month of year, quarter of year) collapse across years — use for cyclical patterns like “which month sells most regardless of year”.Allowed values:

day
week
month
quarter
year
hour
day of week
day of month
day of year
week of year
month of year
quarter of year

string

required

Column for x-axis (typically date/time)

string

required

Column for opening price

string

required

Column for high price

string

required

Column for low price

string

required

Column for closing price

string

Column for trading volume (displayed as bars on secondary y-axis)

string

Format for x-axis values and labels. See Value Formatting for available formats.

string

Format for y-axis values and labels. See Value Formatting for available formats.

string

Format for secondary y-axis (volume) values. See Value Formatting for available formats.

string

Title to display above the component

string

Subtitle to display below the title

string

Information tooltip text (can only be used with title). Displays an info icon next to the title.

string

URL to link the info text to (can only be used with info)

string

Create a custom link title for the info link, placed after the info text (can only be used with info_link)

options group

Configure the y-axisExample:

y_axis_options={
  title = "string"
  title_position = "top"
  ticks = true
  baseline = true
  labels = true
  gridlines = true
  min = 0
  max = 0
  fit_to_data = true
  interval = 0
}

Attributes:

title: string
title_position: string - Position of the axis title. “top” places it horizontally at the top, “side” places it vertically along the axis. Defaults to “side” for 100% stacked charts, “top” otherwise.
- Allowed values:
  - top
  - side
ticks: boolean
baseline: boolean
labels: boolean - Show/hide axis labels
gridlines: boolean - Show/hide gridlines
min: number - Minimum value for this axis (number for numeric axes, date string for date axes)
max: number - Maximum value for this axis (number for numeric axes, date string for date axes)
fit_to_data: boolean - Fit the axis to the data instead of including 0
interval: number - Interval between axis ticks for numeric axes. This option is a suggestion, the actual interval may differ.

options group

Configure the x-axisExample:

x_axis_options={
  title = "string"
  show_title = true
  label_wrap = true
  ticks = true
  baseline = true
  labels = true
  gridlines = true
  min = 0
  max = 0
  fit_to_data = true
  min_interval = "year"
  max_interval = "year"
  interval = 0
  label_rotate = 0
  title_arrow = true
  max_label_length = 0
}

Attributes:

title: string
show_title: boolean - When true, renders the auto-derived axis title (the x column name) below the chart. Ignored when title is set explicitly. Defaults to false — auto-derived column-name titles usually read as visual noise and the axis labels speak for themselves.
label_wrap: boolean
ticks: boolean
baseline: boolean
labels: boolean - Show/hide axis labels
gridlines: boolean - Show/hide gridlines
min: number - Minimum value for this axis (number for numeric axes, date string for date axes)
max: number - Maximum value for this axis (number for numeric axes, date string for date axes)
fit_to_data: boolean - Fit the axis to the data instead of including 0. Defaults to true for numeric x-axes, false otherwise.
min_interval: string - Minimum interval between axis ticks for time-based axes. This option is a suggestion, the actual interval may differ.
- Allowed values:
  - year
  - quarter
  - month
  - week
  - day
  - hour
max_interval: string - Maximum interval between axis ticks for time-based axes. This option is a suggestion, the actual interval may differ.
- Allowed values:
  - year
  - quarter
  - month
  - week
  - day
  - hour
interval: number - Interval between axis ticks for numeric axes. This option is a suggestion, the actual interval may differ.
label_rotate: number - Rotation angle of axis label in degrees. Positive values rotate clockwise, negative values rotate counter-clockwise.
title_arrow: boolean - Show/hide the arrow (→) on the axis title
max_label_length: number - Maximum character length for axis labels. Labels exceeding this length will be truncated with an ellipsis. Defaults to 20 characters when labels are rotated.

options group

Candlestick chart configuration optionsAttributes:

up_color: string - Color for bullish (up) candles
down_color: string - Color for bearish (down) candles
zoom: boolean - Enables zoom by dragging on the chart area

number

Time in seconds between automatic data refreshes (minimum 30). Overrides the page-level auto-refresh setting for this component.

string

Custom SQL WHERE condition to apply to the query. For date filters, use date_range instead.

string

Custom SQL HAVING condition to apply to the query after GROUP BY

number

Maximum number of rows to return from the query. Note: When used with tables, limit will disable subtotals to prevent incomplete subtotal rows.

string

Column name(s) with optional direction (e.g. “column_name”, “column_name desc”)

string

Custom SQL QUALIFY condition to filter windowed results

number

Set the width of this component (in percent) relative to the page width

number

Set a fixed height for the chart in pixels

string

Link this chart to others sharing the same id, syncing their tooltips, axis-pointer, and zoom

Extra columns to include in the tooltip on hover. Each entry is { value, label?, fmt?, color_by_sign?, down_is_good? }. See the tooltip fields guide for examples.

map

Raw ECharts options deep-merged over the chart’s final configuration. Use for anything the structured props do not expose — graphic, visualMap, tooltip styling, and so on. Partial overrides win key-by-key without clobbering Studio’s computed siblings. For overrides scoped to the data series, use echarts_series_options.Example:

echarts_options={
    tooltip={ position="top" }
    graphic=[{ type="text" }]
}
